Condensate drains

CDF

Pneumatech's CDF float drains automatically remove condensate without air loss, handling up to 10 bar. With a durable aluminium design and no need for power or programming, they offer reliable, easy operation and maintenance.

Contact us for a quote!

Energy efficient

Efficient condensate removal

The CDF mechanical float drains automatically remove condensate without compressed air loss, ensuring optimal system performance while minimizing waste.

User-friendly

Plug-and-play solution

The CDF drains require no power supply, programming, or calibration, offering a plug-and-play solution that simplifies installation and operation.

Reliable performance

Durable & reliable design

Built with a robust aluminum body and featuring large cross-section openings for effective drainage, complemented by a manual drain for easy maintenance and extended service life.

CDF Mechanical Float Drains

Pneumatech’s CDF mechanical float drains ensure efficient condensate removal without compressed air loss, handling pressures up to 10 bar. Condensate accumulates in a robust, pressure-proof aluminium receiver and is automatically discharged once the maximum level is reached, using a direct-acting valve piloted by a precise float sensor.


Equipped with an integrated venting function to prevent air slots, the CDF drain guarantees reliable performance and uninterrupted operation. Its rugged aluminium construction, with threaded inlet and outlet connections, ensures durability and easy installation. The CDF range is a dependable choice for maintaining the efficiency and reliability of compressed air systems.

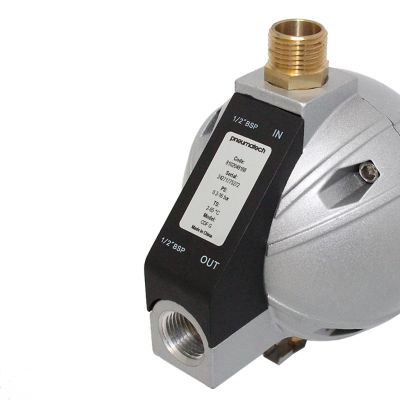

CDF mechanical float drain zoom view

The essential role of condensate drains in compressed air systems

Compressed air condensate drains are essential for maintaining the efficiency and reliability of compressed air systems. By removing moisture and contaminants, they protect downstream equipment, reduce the risk of corrosion, and help ensure consistent air quality. Suitable for both oil-lubricated and oil-free systems, these drains discharge condensate automatically without disrupting system operation. Pneumatech's CDF Mechanical Float Drains take reliability further with a design that eliminates air loss during drainage and features a precise float sensor for consistent performance. With their durable aluminium construction and integrated venting to prevent air slots, CDF drains provide a dependable solution for optimising compressed air systems across diverse applications.

Discover the key features of the CDF

The CDF float drains provide reliable and efficient condensate management for compressed air systems operating at pressures up to 10 bar. Automatically discharging condensate without air loss, they utilise a precise float sensor and a durable aluminium receiver for consistent, long-term performance. An integrated venting function prevents air slots, ensuring smooth operation, while threaded inlet and outlet connections allow for straightforward installation. With their robust aluminium construction and dependable functionality, the CDF drains offer a practical and durable solution for maintaining system efficiency.

Experience the benefits of effective condensate management

Ready to safeguard your compressed air system and maximise efficiency? High-quality condensate management solutions prevent moisture and contaminants from compromising your equipment and operations. Designed for reliability, energy efficiency, and seamless performance, these advanced technologies protect your system while minimising maintenance needs and operational costs. Contact us today to discover how upgrading your condensate management can elevate system performance and keep your operations running smoothly.

Contact our condensate management experts

General specifications

Nominal volume flow (m3/h)*

20000

*Refer to 1bar and 20°C at 7bar operating pressure, intake air of compressor 25°C at 60% of relative humidity, 35°C compressed air temperature

Drain capacity (l/min)

2,8 at 7 bar / 4,2 at 10 bar

Min. recommended pressure

1,5 bar (22 psi)

  •  No loss of compressed air
    Automatic controlled drainage of condensate without any compressed air leak
  • Plug-and-play solution
    No power supply needed
    No programming or calibration
  • Guaranteed reliability
    Large cross-section openings
    Well-proven, rugged aluminum design
    Provided with a separate manual drain to depressurize the pressure aluminium housing and allow manual discharge for venting or draining
