Line filters

VT 1-9

The VT 1-9 range of activated carbon towers delivers exceptional air purity, efficiently removing hydrocarbons, odours, and oil vapours. Compact yet robust, these units ensure reliable performance and are perfectly suited for industries demanding high-quality compressed air.

Energy efficient

Efficient design for lower costs

Designed with an optimal internal flow path, the VT 1-9 towers maintain an impressively low pressure drop of just 125 mbar, significantly reducing energy consumption and lowering overall system operating costs.

Reliable performance

Exceptional air purity

The VT 1-9 ensures oil content below 0.003 mg/m³, meeting ISO 8573-1:2010 Class 1 standards with Pneumatech's G and C filters, protecting equipment and supporting critical applications.

Compact design

Easy integration

Featuring a robust yet lightweight build, the VT 1-9 units are easy to install, service, and maintain. For added convenience, a wall-mounting kit is available for models VT 1-7, making them ideal for space-conscious setups.

VT 1-9 Activated Carbon Filters

The VT 1-9 range of activated carbon towers delivers high-purity air by effectively removing hydrocarbons, odours, and oil vapours, achieving a residual oil content below 0.003 mg/m³. When paired with Pneumatech’s G and C filters, it meets ISO 8573-1:2010 Class 1 standards, ideal for applications requiring exceptional air quality.


Designed for efficiency, the VT 1-9 minimises pressure drop to just 125 mbar, reducing energy consumption and operational costs. Its compact, lightweight design allows for easy installation and servicing, with optional wall-mounting for VT 1-7 models. Perfect for space-conscious, quality-critical environments, the VT 1-9 ensures reliable performance across diverse industries.

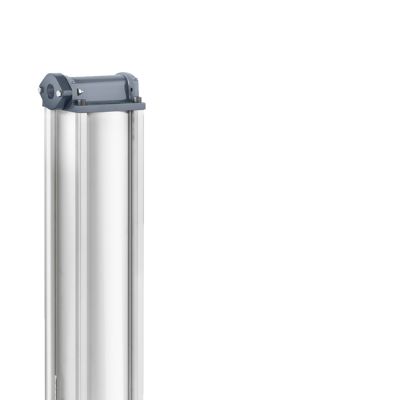

VT 1-9 activated carbon towers front view zoom

Optimal performance through effective filtration

Air quality is critical to the efficiency, reliability, and longevity of compressed air systems. Contaminants such as oil vapours, hydrocarbons, and odours can compromise equipment performance, increase energy consumption, and lead to expensive downtime. The VT 1-9 range of activated carbon towers addresses these challenges with advanced filtration technology, ensuring air purity that complies with ISO 8573-1:2010 Class 1 standards. By effectively eliminating impurities, the VT 1-9 range protects your equipment, enhances operational efficiency, and maintains the highest quality for your end products.

Discover the key features of the VT 1-9

The VT 1-9 range is equipped with features designed to ensure superior air purification and ease of use. Its two-layer activated carbon material guarantees exceptional adsorption capacity, delivering consistent air purity with a residual oil content below 0.003 mg/m³. The optimised internal flow path reduces pressure drop to just 125 mbar, significantly cutting energy consumption and operational costs. Built for flexibility, the range offers compact and lightweight units, with models VT 1-7 featuring an optional wall-mounting kit for space-saving installation. With a robust construction and performance certified by external bodies, the VT 1-9 ensures reliability and compliance with ISO 8573-1:2010 Class 1 standards, making it a dependable solution for quality-focused industries.

Experience the advantages of advanced compressed air filtration

Ready to elevate your compressed air system's performance? Investing in high-quality filtration ensures clean, contaminant-free air that protects your equipment, extends its lifespan, and enhances operational efficiency. With cutting-edge technology designed for exceptional reliability and minimal energy consumption, advanced compressed air filters are a game-changer for any system. Contact us today to explore how upgrading to superior filtration can optimize your operations and reduce costs.

General specifications

Nominal flow rate (m3/h)

72 - 1116

Connection (G/NPT)

1/2" - 1 ½"

Model

Nominal flow rate (m3/h)

Connection (G/NPT)

VT 1

72

1/2”

VT 2

162

1”

VT 3

216

1”

VT 4

342

1”

VT 5

450

1 ½”

VT 6

540

1 ½”

VT 7

666

1 ½”

VT 8

882

1 ½”

VT 9

657

1 ½”

  • Guaranteed air purity with residual oil content below 0,003 mg/m³
    Superb 2-layer activated carbon material
    Designed with sufficient safety margin
    Performance certified by external body
  • Significant energy savings & limited system operating costs
    Optimal internal flow path
    Average pressure drop of 125 mbar only
  • Certified class 1 performance, according to ISO 8573-1:2010
    If combined with Pneumatech oil coalescing filters (G & C)
  • Compact and reliable product design
    Wall-mounting kit, optional for VT1 - 7
    Easy to lift, install and service
  • The VT is capable of removing hydrocarbons, odors and oil vapors from compressed air

  • Compressed air inlet pressure:
    VT 1-9: 1-16 barg/15-232 psig  (extruded Versions)
    VT with optional oil indicator: 1-8,8 barg/ 15-127 psig
  • Ambient air temperature: -10 - 50°C/14 - 122°F
  • Compressed air inlet temperature: 1 - 66°C/34 - 151°F

  • Wall mounting kit
  • Oil indicator
  • Dust filter
  • ISO 8573-1:2010 Class 1 validation certificate
