Line filters

Ultimate 10-2550

The Ultimate 10-2550 range combines energy-efficient air filtration with low running costs. Its advanced design ensures effective oil aerosol removal, particle retention, and airflow optimisation while meeting ISO 8573-1:2010 standards.

Contact us for a quote!

Energy efficient

Ultimate efficiency, lasting savings

The Ultimate 10-2550 range features advanced filtration and flow optimisation, reducing pressure loss and energy use. This enhances efficiency, lowers operational costs, and delivers lasting savings.

Reliable performance

Advanced filtration for pure air

The Ultimate range’s deep pleated media and advanced filters ensure superior oil and particle removal, meeting ISO 8573-1:2010 standards for clean, high-quality compressed air.

Low maintenance

Easy installation & maintenance

The Ultimate filter range features a flexible design with an accessible drain and a dedicated adapter for quick removal, simplifying maintenance and installation while enhancing convenience.

Ultimate 10-2550 Threaded Filters

The Ultimate 10-2550 range is designed to deliver clean, dependable compressed air for a wide variety of applications. Built to exceed strict air purity standards, it supports efficiency and sustainability while ensuring reliable performance.


By reducing energy use and operational costs, it provides a practical solution for businesses seeking high-quality air filtration. Its versatility shines through with options like coalescence and activated carbon filters, along with dust and water separation capabilities, all engineered for effective performance and easy maintenance.


With an emphasis on long-term reliability and convenience, the Ultimate range strikes the perfect balance between efficiency and simplicity, setting a new standard in air filtration.

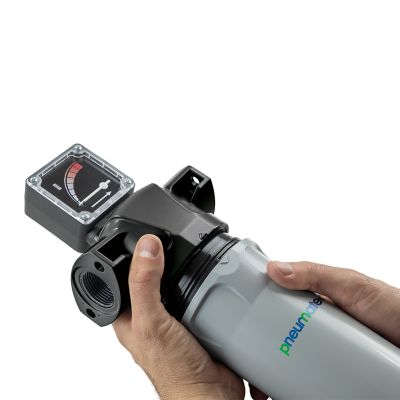

Ultimate 10-2550 threaded filters detail hands

Optimal performance through effective filtration

Air quality is critical in ensuring the reliability, efficiency, and longevity of compressed air systems. Contaminants such as oil aerosols, water, and particulates can compromise equipment performance, increase energy consumption, and lead to costly downtime. The Pneumatech Ultimate 10-2550 range addresses these challenges with advanced filtration technology, delivering compressed air that meets the highest purity standards in line with ISO 8573-1:2010. By removing impurities efficiently, this range safeguards your equipment, enhances operational efficiency, and ensures the consistent quality of your end products.

Key features

Cutting-edge deep pleated media

The Ultimate 10-2550 range utilizes cutting-edge deep pleated media technology, which significantly enhances filtration performance. This advanced filtration design improves the removal of oil aerosols and particulate matter, ensuring cleaner and higher-quality compressed air.

The increased surface area of the pleated media allows for more efficient filtration, reducing operational downtime and extending the lifespan of the filter.

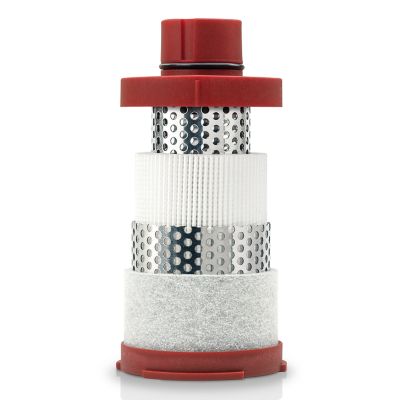

Ultimate 10-2550 threaded filter detail media

Key features

Flow-optimized housing design

The new flow-optimized housing design is a standout feature of the Ultimate filter range. This design reduces differential pressure loss, which in turn minimizes energy consumption and enhances airflow efficiency.

By streamlining the air path within the filter, Pneumatech’s housing design ensures maximum filtration performance while lowering energy costs, making it one of the most energy-efficient filter housings available.

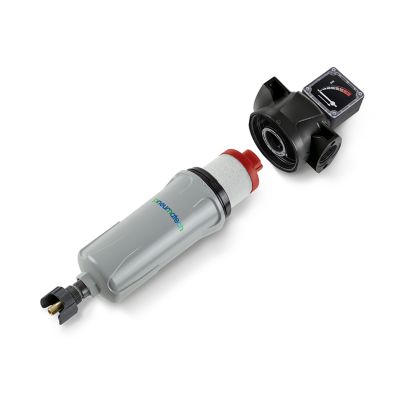

Ultimate 10-2550 threaded filters detail housing

Key features

Externally accessible drain

Designed for easy maintenance, the Ultimate 10-2550 range includes an externally accessible drain, allowing for quick and hassle-free maintenance without the need to disassemble the filter.

This feature not only simplifies upkeep but also helps reduce operational downtime, ensuring that the filter remains in optimal condition for long-term, reliable performance.

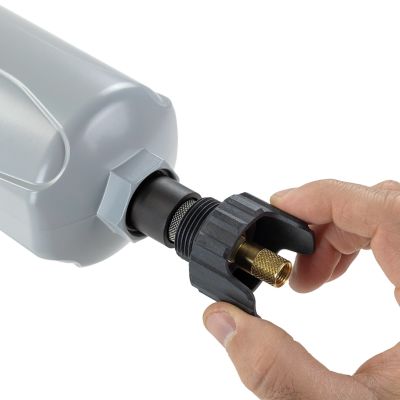

Ultimate 10-2550 threaded filter detail drain

Experience the advantages of advanced compressed air filtration

Ready to elevate your compressed air system's performance? Investing in high-quality filtration ensures clean, contaminant-free air that protects your equipment, extends its lifespan, and enhances operational efficiency. With cutting-edge technology designed for exceptional reliability and minimal energy consumption, advanced compressed air filters are a game-changer for any system. Contact us today to explore how upgrading to superior filtration can optimize your operations and reduce costs.

Contact our air treatment experts

General specifications

Nominal flow rate (m3/h)

10 - 2550

Connection (G/NPT)

1/8" - 3"

Grade

P

G

S

C

D

V

Particle removal (micron)

5

-

1

-

0.01

-

Outlet oil aerosol concentration (mg/m³)

1

0.3

-

0.01

-

0.003

Total mass efficiency (%)

>90

>99.25

-

>99.9

-

-

Quality class of air at outlet (particles/oil)

4/3

-/3

3/-

-/2

1/-

-/1

Initial pressure drop over filter in dry applications (bar)

0.05

0.055

0.055

0.085

0.085

0.115

Initial pressure drop over filter in wet applications (bar)

0.08

0.125

-

0.125

-

-

  • Flow-optimised design
  • Improved air flow characteristics
  • Reduced energy consumption
  • Reduced costs of owner ship
  • 6 filtration grades
  • Increased performance
    Significantly reduced differential pressure <125 mbar
    Exceptional oil aerosol and  particulate removal
  • Diltration technology
    Efficient deep pleated media
    Housing design for flexible installation and simplified serviceability
    Externally accessible drain
  • Tested and validated in accordance with ISO 12500-1 & ISO 8573-1:2010
  • Dead stop head to bowl connection with lock indication for safety closure
  • Corrosion protected housings: internal and external electrophoretic paint finish followed by a tough polyester powder coating
  • Unique, specially designed adapter for removal of the automatic and manual drains from the bowl without a need to open the filter (for sizes 119-2550 m³/h)
  • Multiple options
    Differential pressure gauge with/without potential free contact
    Manual drain
    Automatic drain
    Electronic drain
    Wall brackets
    Connection kits
  • Two ranges available:
    HE version with differential  pressure gauge
    S version without differential  pressure gauge

  • Significantly reduced differential pressure <125 mbar
  • Maximum working pressure: 16 bar(g)/232 psi(g)
  • With manual drain: up to 20.7 bar(g)/300 psi(g)
  • Available from 1/8“ to 3“
  • Flow rates from 10-2550 m³/h (6-1500 cfm)

  • Connection kits
  • Automatic drain
  • Wall brackets
  • Manual drain with adapter
  • Electronic drain
  • Differential pressure gauge including potential free contact
