Condensate management

Condensate Drains

Condensate drains are essential components in compressed air systems, responsible for removing water, oil, and contaminants that accumulate during air compression. Proper condensate management prevents equipment damage, reduces maintenance costs, and ensures high air quality for industrial applications. Whether in air compressors, air dryers, or filters, condensate must be effectively discharged to prevent corrosion, pressure drops, and system inefficiencies.

How do condensate drains work?

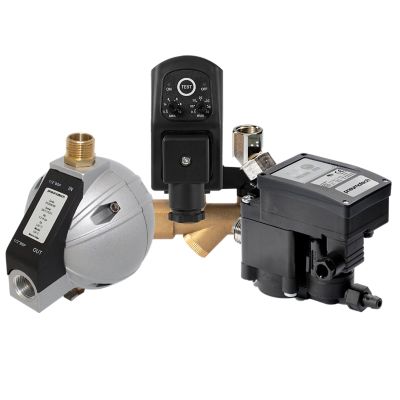

As compressed air cools, moisture condenses into liquid form, carrying with it oil and particulate contaminants from the system. Condensate drains automatically detect and remove this accumulated liquid from components like air receivers, filters, and dryers. Various types of drains exist, including:

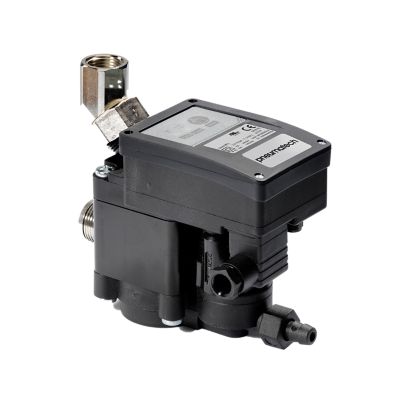

Zero-loss drains
Utilize sensors to discharge condensate only when necessary, preventing compressed air loss and improving energy efficiency.

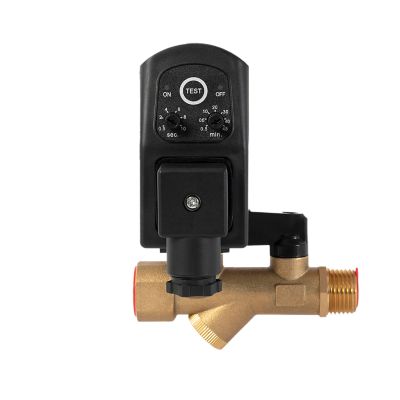

Timer-based drains
Open at preset intervals, releasing condensate regardless of actual moisture levels.

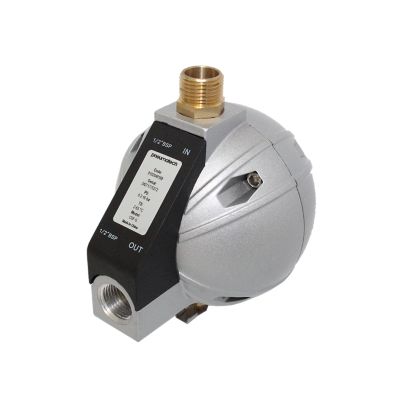

Float drains
Use a mechanical float that rises with condensate levels, triggering a discharge valve when full.


By continuously removing condensate, these drains protect system components, maintain efficiency, and ensure compliance with environmental regulations for condensate disposal.

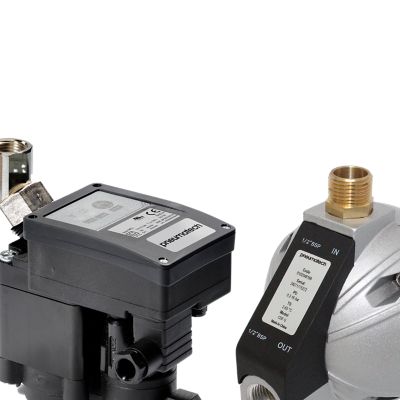

Condensate drains

Benefits of using condensate drains in compressed air systems

Investing in the right condensate drain enhances compressed air system performance, reduces operational costs, and ensures compliance with industry standards. Here are some of the benefits:

1. Prevents water damage
Protects compressors, dryers, and downstream equipment from moisture-related corrosion.

2. Maintains system efficiency
Prevents pressure drops and blockages caused by water buildup.

3. Reduces energy waste
Zero-loss drains minimize air loss, improving energy efficiency and lowering costs. Ensures

4. Air quality compliance
Removes contaminants that could affect end-use applications in manufacturing, food & beverage, and pharmaceuticals. Extends

5. Equipment lifespan
Reduces wear and tear on system components, lowering maintenance and replacement costs.

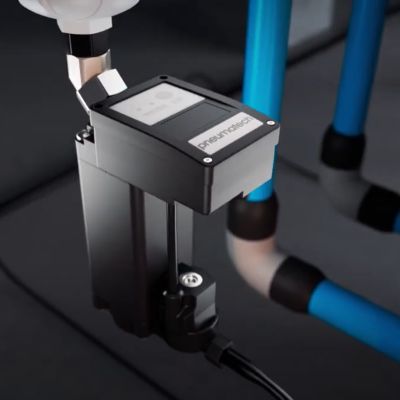

Installed condensate drain

How to choose the right drain?

Selecting the right condensate drain requires evaluating several key factors to ensure efficient moisture removal and system performance. The condensate volume plays a crucial role, as larger systems with high moisture output need high-capacity drains to prevent overflow. Energy efficiency is another important consideration, with zero-loss drains being ideal for minimizing air loss and reducing operating costs. Additionally, the drain must be compatible with the system’s operating pressure and flow rate to function effectively. Automation level is also a factor, as electronic and sensor-based drains offer automatic operation, reducing the need for manual intervention. Lastly, the type of contaminants in the condensate must be considered—if the condensate contains a high level of oil, an oil-water separator may be necessary to meet disposal regulations. By taking these factors into account, you can optimize condensate management, improve energy efficiency, and reduce maintenance needs.

Condensate drains maintenance

Regular maintenance is crucial for preventing blockages and ensuring continuous operation. This includes inspecting and cleaning drain valves to prevent clogging from dirt and oil buildup, checking for leaks or improper operation in timer-based and float drains, replacing worn-out seals and components to maintain efficiency, and ensuring zero-loss drains function correctly to prevent unnecessary air loss. Routine maintenance helps extend the lifespan of the drain, reduces system downtime, and maintains peak performance.
