Refrigeration dryers

AD 15-4200

Pneumatech’s AD 15-4200 non-cycling refrigeration dryers are designed to efficiently protect compressed air systems by reducing moisture, making them ideal for a wide range of industrial applications.

Lower energy costs

Efficient moisture removal

The AD 15-4200 range features zero-loss drains that remove moisture without wasting compressed air, maximizing system efficiency and saving energy costs. This makes it a smart and cost-effective choice for industrial applications.

Reliable performance

Stable operation

The Pneumatech AD 15-4200 dryers offer superior reliability by using a hot gas bypass valve, which prevents ice formation during low airflow. This ensures consistent performance and protects the dryer, making it a dependable solution for industrial applications.

Smart monitoring

Always in control

The Pneumatech AD 15-4200 range features a new controller with real-time PDP monitoring, remote alarms for maintenance alerts, and a remote start/stop feature, providing enhanced control and operational efficiency.

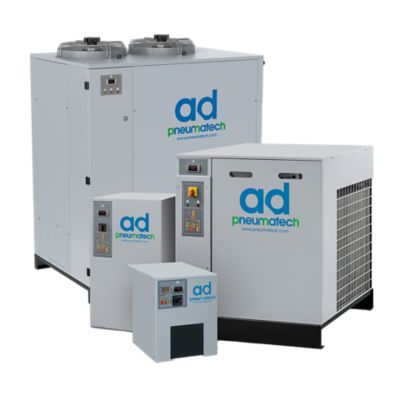

AD 15-4200 Non-Cycling Refrigeration Dryers

Pneumatech’s AD 15-4200 non-cycling refrigeration dryers are designed to protect compressed air systems by reducing moisture levels. Featuring a modern controller with real-time PDP monitoring and zero-loss electronic drains, they ensure maximum efficiency without air loss.



The AD15-105 uses eco-friendly R513A refrigerant to lower global warming potential, while the AD125-4200 models combine rotary compressors with R410A refrigerant, improving energy efficiency by up to 30% and complying with EU regulation 517/2014. The reliable rotary compressors also reduce vibration and stress, achieving a stable pressure dew point of up to 3°C/37°F.

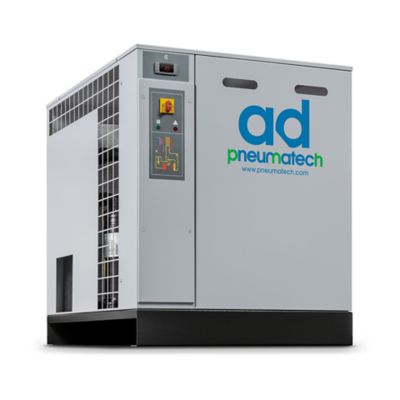

AD 15-4200 refrigeration dryer left angle

Refrigeration dryer technology

Refrigeration dryers, available in air-cooled or water-cooled models, cool the warm, moisture-laden air from the compressor. This process begins in the air-to-air heat exchanger and continues in the air-to-refrigerant heat exchanger, where moisture condenses and is drained. The air is then reheated to room temperature, lowering the pressure dew point and preventing condensation on the piping. This heat exchange also reduces the refrigerant system’s cooling demand by cooling the incoming air. Refrigeration dryers come in both cycling and non-cycling variants, with non-cycling models maintaining a constant refrigerant flow, ensuring stable operation. As the most widely used drying technology, refrigeration dryers have a broad range of applications.

Discover the key features of the AD 15-4200

Pneumatech’s AD 15-4200 non-cycling refrigeration dryers come packed with innovative features designed to enhance the performance and efficiency of your compressed air system. Equipped with a new digital controller, these dryers offer real-time pressure dew point (PDP) monitoring, ensuring precise control over air quality. The zero-loss electronic drains eliminate unnecessary compressed air waste, maximizing efficiency. The carefully engineered heat exchangers provide superior cooling performance, making these dryers an ideal solution for industrial applications. The AD 15-105 models introduce the eco-friendly R513A refrigerant, significantly reducing global warming potential, while the AD 125-4200 models boast a rotary compressor paired with R410A refrigerant. This winning combination improves energy efficiency by up to 30%, reduces refrigerant gas usage by 20%, and complies fully with European regulation EU No 517/2014, all while achieving a stable dew point of 3°C (37°F). These advanced features make the AD 15-4200 range both highly efficient and environmentally responsible.

Experience the advantages of advanced compressed air drying

Ready to take your compressed air system to the next level? Investing in a quality dryer ensures clean, dry air that protects your equipment, reduces maintenance costs, and boosts overall efficiency. With advanced features designed for reliability and energy savings, a high-performance dryer can significantly improve your operations. Reach out to us today and discover how upgrading your air drying solution can benefit your business.

General specifications

Pressure dew point (°C)

3

Nominal flow rate (m3/h)

22 - 7200

Max. inlet temperature (°C)

60

AD 15-425 50Hz

Model

Nominal flow rate (m3/h)

AD 15

22

AD 20

36

AD 30

50

AD 40

72

AD 65

108

AD 85

140

AD 105

180

AD 125

216

AD 145

245

AD 185

313

AD 230

389

AD 270

461

AD 355

601

AD 425

720

AD 530-4200 50Hz

Model

Nominal flow rate (m3/h)

AD 530

900

AD 635

1080

AD 750

1440

AD 1000

1800

AD 1250

2100

AD 1600

2700

AD 1800

3000

AD 2200

3744

AD 2500

4200

AD 3000

5040

AD 3500

5940

AD 4200

7200

  • Non-cycling refrigeration dryers
  • Operating Pressure:
    AD 15 - 65: 4-16 barg/60-232 psig
    AD 85 - 4200: 4-14 barg/60-203 psig
  • Max. inlet temperature: 55°C/113°F
  • Flow rate: 21 - 7200 m³/hr/   12 - 4238 cfm
  • Pressure dew point: up to +3°C/37°F
  • Power supply:
    AD 15 - 270: 230V AC 50/60 Hz
    AD 355 - 4200: 400V/50Hz; 380V/60Hz; 460V/60Hz
  • Refrigerant:
    R410A
    - AD 125-4200
    R513A
    - AD 15-105
    - AD 185-G 230/50
    - AD 270-G 230/50
    - AD 635-G 400/50
