Nitrogen purification systems

PPNG 12-235 DX

The PPNG 12-235 DX nitrogen purification system delivers nitrogen gas purity up to 99.9999%, meeting the demands of critical applications while reducing air and energy consumption. It is easy to install, fully automated, and designed to work seamlessly with most nitrogen generators.

Contact us for a quote!

Ultra-High Purity

Guaranteed nitrogen quality

The PPNG 12-235 DX delivers nitrogen purity up to 99.9999%, making it ideal for sensitive processes in industries like electronics, chemicals, and laser cutting, where even trace contaminants can compromise results.

Lower Operating Costs

Reduced feed air demand

By requiring up to 40% less feed air compared to standard nitrogen generator systems, the PPNG 12-235 DX helps businesses cut energy consumption, reduce operating costs, and avoid oversizing compressors or generators.

Reliable & Easy

Fully automated operation

The PPNG 12-235 DX is easy to install and fully automated, with precision hydrogen dosing, purity monitoring, and real-time performance tracking. Together, these features ensure safe, continuous nitrogen production with minimal user intervention.

PPNG 12-235 DX Nitrogen Purification Systems

For industries where nitrogen purity is non-negotiable, the PPNG 12-235 DX purification system offers a cost-effective solution without the need for oversized compressors or nitrogen generators. By removing residual oxygen through a controlled catalytic reaction with hydrogen, it achieves nitrogen purities of up to 99.9999%, making it ideal for electronics, chemicals, laser cutting, and other demanding applications.


The PPNG 12-235 DX requires up to 40% less feed air compared to generator-only systems, reducing operating costs and environmental impact. Designed for easy installation and full automation, it integrates seamlessly with existing nitrogen generation systems. With real-time monitoring, purity safeguards, and precision hydrogen dosing, it delivers the purity you need, without waste.

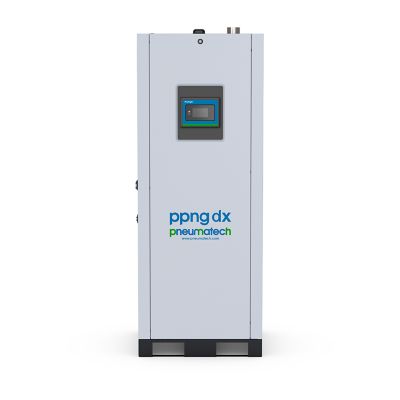

PPNG DX nitrogen purification system front view

Achieving ultra-pure nitrogen through purification

A nitrogen purification system is part of an on-site nitrogen generation system. It relies on a small amount of hydrogen to remove residual oxygen from nitrogen gas produced by a nitrogen generator. The catalytic reaction ensures that nitrogen gas achieves near-absolute purity, making it suitable for critical applications in industries such as electronics, chemicals, laser cutting and more. By generating  ultra-pure nitrogen with a nitrogen generator+purification system rather than with just a generator, users can  size the compressor and generator of their gas generation system smaller and significantly reduce  feed air consumption.

Key Features

Catalytic oxygen removal

At the core of the PPNG 12-235 DX is its catalytic purification system, designed to eliminate residual oxygen from nitrogen gas. This process works by introducing a controlled amount of hydrogen, which reacts with oxygen to form water vapour, effectively purifying the nitrogen stream. The result is consistent nitrogen purity levels of up to 99.9999%, making the system suitable for the most oxygen-sensitive applications, such as electronics manufacturing, laser cutting, and chemical processes. This high level of purity helps protect end products and ensures process stability.

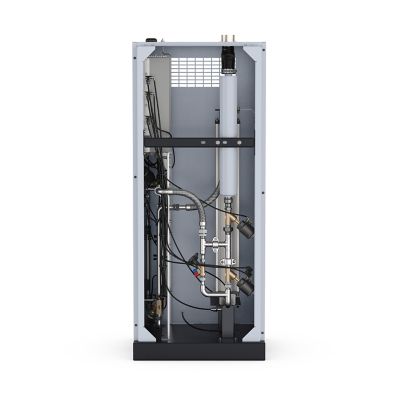

PPNG DX nitrogen purification system ghost view

Key Features

Precision hydrogen dosing

The PPNG 12-235 DX features an automatic hydrogen dosing system, designed to deliver precise amounts of hydrogen based on the oxygen content in the nitrogen stream. This fine-tuned control ensures optimal reaction efficiency, allowing residual oxygen to be completely removed without excess hydrogen consumption. As a result, the system maintains stable nitrogen purity levels, minimises hydrogen usage, and prioritises process safety. Users can trust the system to deliver purity consistently, without needing frequent adjustments or supervision.

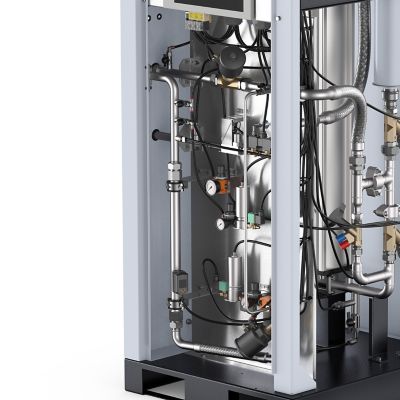

PPNG DX nitrogen purification system ghost zoom view

Key Features

Advanced Purelogic Touch controller

The PPNG 12-235 DX is equipped with the Purelogic Touch Controller, offering full automation for safe and reliable operation. The controller continuously monitors key parameters, such as nitrogen purity, pressure, and flow, ensuring the system operates at peak performance at all times. It also features automatic standby modes, which reduce energy consumption during periods of low nitrogen demand, helping lower operating costs. Built-in safety safeguards protect gas quality and prevent operational issues, giving operators peace of mind and minimising the risk of production downtime.

Purelogic Touch controller

Unlock the benefits of on-site nitrogen generation

Are you considering whether to transition from buying bottled nitrogen to generating nitrogen on-site? The choice is clear—you absolutely should! On-site gas generation offers numerous benefits, including reduced costs, precise purity control, lower transportation emissions, enhanced safety, and the elimination of logistical challenges. In every aspect, on-site nitrogen generation proves to be the more effective and efficient solution. Reach out to our experts to learn more about how this transition can benefit your operations.

Contact our nitrogen experts

General specifications

Nitrogen purity available (%)

99.99999

N2 inlet pressure range (barg)

4 - 13

Pressure drop (bar)

0.05

Model

Nominal free nitrogen delivery (Nm3/h)

Inlet 99.9% purity
Outlet > 99.999% purity

PPNG 12 DX

20

PPNG 24 DX

40

PPNG 35 DX

60

PPNG 47 DX

80

PPNG 59 DX

100

PPNG 71 DX

120

PPNG 82 DX

140

PPNG 94 DX

160

PPNG 118 DX

200

PPNG 147 DX

250

PPNG 177 DX

300

PPNG 206 DX

350

PPNG 235 DX

400

PPNG 12-235 DX product brochure

Download

Filename
Pneumatech_PPNG_12-235_DX_Sales_Leaflet_ENG_6999901040_LR.pdf
Size
479 KB
Format
pdf
Download

  • Guaranteed ultra-high purity from 99.999% up to 99.9999% with 99.9% as inlet
  • Cost-efficient alternative to bigger sized gas generator and compressor
  • 40% less feed air required
  • Ability to increase nitrogen output capacity when added to an existing nitrogen generation system
  • Does not strain a facility’s electrical system
  • Lower CO2 footprint through energy efficiency
  • Easy to install
  • Fully automated hydrogen dosing
  • Automated quality and reliability features
  • Works with most nitrogen generators

  • Nitrogen purity achievable from 99.999% up to 99.9999% with 99.9% inlet
  • N2 inlet pressure range: 4-13 bar(g) / 58-188 psi(g)
  • H2 inlet pressure range: 6-15 bar (g) / 87-218 psi(g)
  • Inlet temperature range: 5-45ºC / 41-113°F
  • Pressure drop: 0.05 bar
  • H2 feed purity grade: ≥3.0
  • Power supply: 115V AC / 230V AC & 50 / 60Hz 2

  • Outlet nitrogen check and restore
  • External oxygen analyzer  (wall-mounted)
  • External hydrogen analyzer  (wall-mounted)
