Absolute air purity
Guaranteed oil-free air delivery

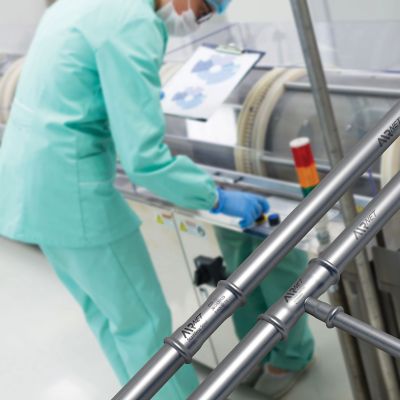

The AIRnet stainless steel variant ensures 100% contamination-free air, making it the ideal choice for industries where purity is critical.
Unmatched durability
Corrosion-resistant & long-lasting
Built from stainless steel, AIRnet’s piping system offers superior resistance to corrosion, rust, and wear. This guarantees long-term durability, reducing maintenance needs while ensuring a consistently reliable air supply.
Regulatory compliance
Meets the highest standards
Fully compliant with strict industry regulations, the AIRnet stainless steel variant guarantees a safe, hygienic, and reliable air supply.
General specifications
Max. working pressure (barg)
16
Max. operating temperature (°C)
-20 to 120
Lowest allowable dewpoint (°C)
-40
Technical specifications AIRnet Stainless Steel variant |
||
---|---|---|
Available sizes |
Pipes SS304L: D15 (½”), D22 (¾"), D28 (1”), D35 (1 ¼”), D42 (1 ½”), D54 (2”), D76 (2 ¾”), D89 (3 ½”), D108 (4”) |
|
Applications |
Compressed Air, Vacuum, Nitrogen, Helium, Argon, Neon, Xenon and Krypton |
|
Material |
Stainless Steel AISI 316L 1.4404 |
EN10088 |
Safety factor |
4, Burst pressure > 64 Bar (> 928 PSI) |
|
Working pressure |
16 Bar (232 PSI) |
|
Working temperature |
-20°C to 120°C (- 4°F to 248° F) |
|
Vacuum level |
20 mbar (0.29 PSI) abs |
|
Dewpoint |
Lowest allowable pressure dewpoint is -70°C (-94°F) |
|
Treatment |
304L - Unannealing 316L - Annealing |
|
AIRnet Stainless Steel product brochure
Download
- Filename
- AIRnet Stainless Steel product brochure.pdf
- Size
- 142 KB
- Format
- Stainless steel
- No corrosion, leak resistant and 10 year guarantee
- Press fit system ensures fast installation with minimal tools
- No welding, no threading: just push & press
- Silicone free system
- FKM Seal (approved by all international regulating bodies for Pharma, F&B)
- Can be used for clean room applications (316 L)
- Considerable savings on the labor cost
- Advantage of press connection
20% enlargement of the sealing surface area with a security seal ring minimizes the risk of accidents
Eliminates the risk of sealing ring being pressed out or damaged
The fit between the sealing ring and the groove makes the pipes insertion easier.
