The benefits of refrigerated air dryers

Refrigerated air dryers have many names – refrigerant dryers, refrigeration air dryers, fridge dryers, and more. All refer to the same technology to remove moisture from compressed air. In this article, we will take uncover how refrigerated compressed air dryers work, what their benefits are, and when to use them. We’ll also highlight a recent important advancement in refrigerated air dryer technology – the introduction of variable speed drive technology for dryers.

What is a refrigerated air dryer?

A refrigerated air dryer uses a refrigeration system to cool compressed air and then condense and drain the moisture in the air. Here’s how it works. The untreated air enters the dryer and gets a first cool-down by the exiting cool, dry air in an air-to-air heat exchanger. Next, it will get cooled down further by entering the air-to-refrigerant heat exchanger. Here, it is cooled to approximately 3-4°C/40°F. As the air cools, the moisture in it turns into water droplets. The resulting condensate is then mechanically separated from the air flow. On its way to the exit, the compressed air is rewarmed in the heat exchanger by passing the incoming hot air. This lowers the relative humidity and traps any remaining moisture in vapor form.

Why the need to dry air?

Why do you need an air dryer in the first place? Because when compressed air leaves a compressor, it is saturated with 3 types of contaminants: moisture, dust/dirt, and traces of oil. These are pollutants that are in the ambient air before it gets compressed. And then there are those that get added during the compression process. Either way, these contaminants can compromise your entire air system, your pneumatic tools, and your final products. Moisture alone can damage the compressor, air motors, and valves, as well as possibly contaminate the product and affect your customers. Corrosion, line freezing, and the creation of microorganisms are just a few of its harmful effects. An air dryer removes this moisture and the risks it entails.

Benefits AC VSD

When to use a refrigerated compressed air dryer?

Refrigerated air dryers are the ideal solution if your operations meet the following conditions:


  • The ambient temperature is less than 50°C/122°F,
  • The main goal is to prevent condensation,
  • And the required pressure dew point is around 3°C-4°C/37°F-39°F.

The benefits of refrigerated compressed air dryers

Refrigerated air dryers have a number of compelling benefits:


  • Low initial cost
  • High reliability, easy to use and maintain
  • Extends the life of your compressor
  • Energy savings

Variable speed drive technology

As a leader in air treatment, Pneumatech continuously innovates to enhance dryer technology. One of the most significant advancements in refrigerated compressed air dryers is the introduction of VSD (Variable Speed Drive) technology. While VSD has been widely used in compressors for years, its application in refrigerated dryers has transformed energy efficiency. Unlike conventional dryers that run at full power at all times, VSD dryers adjust their energy consumption to match demand, ensuring optimal performance with minimal waste.

With up to 60% energy savings, Pneumatech VSD dryers significantly reduce operating costs while lowering environmental impact. Their excellent TEWI score helps businesses meet sustainability goals. Plus, the investment pays for itself in as little as 18 months—all while delivering high-quality, Class 4 purity air with reliable performance.

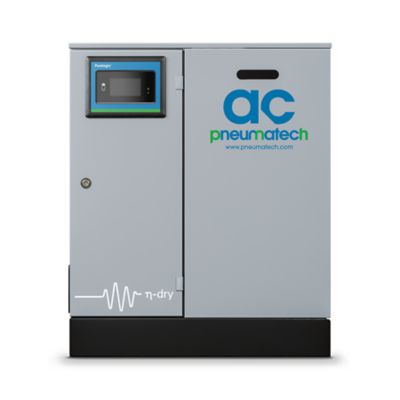

AC 200-630 VSD refrigeration dryer front view

Get in touch

If you're looking to reduce energy costs and enhance the reliability of your compressed air system, Pneumatech's refrigerated air dryers are the perfect solution. Contact us today to learn more about how our dryers can improve your operations, save energy, and help you achieve your sustainability goals. Our experts are here to help!
