Adsorption dryers

PE 760-3390 S

The PE 760-3390 S range delivers consistent -40°C pressure dew points, ensuring dry, high-quality compressed air for demanding industrial applications. Built for energy efficiency and long-term reliability, these dryers are easy to install and maintain, with advanced controls for optimized performance.

Contact us for a quote!

Consistent Air Quality

Dependable dew point performance

The PE 760-3390 S dryers achieve a steady -40°C dew point, ensuring dry, clean compressed air to protect equipment and maintain product quality.

Reduced energy consumption

Optimised for efficiency

Low watt density heaters and dew point dependent switching (optional) lower energy use, helping reduce operational costs without compromising air quality.

Ease of Installation

Built for simplicity & longevity

Forklift slots, lifting eyes, and flanged piping simplify installation, while stainless steel screens and long-life desiccant ensure durability and easy maintenance.

PE 760-3390 S Heated Purge Adsorption Dryers

Moisture in compressed air can cause corrosion, equipment damage, and costly downtime. The PE 760-3390 S heated purge desiccant dryers maintain a steady -40°C pressure dew point, ensuring dry, high-quality air for industrial applications, including food & beverage, oil & gas, and power generation.


Energy-saving features, like dew point dependent switching and low watt density heaters, help reduce operating costs, while the Purelogic™ controller provides real-time monitoring and system safeguards.


Installation and maintenance are made easy with forklift slots, lifting eyes, and flanged piping, while long-life desiccant ensures durability in demanding environments. Available in capacities from 760 to 3390 cfm, the PE 760-3390 S is built to perform in large-scale air systems.

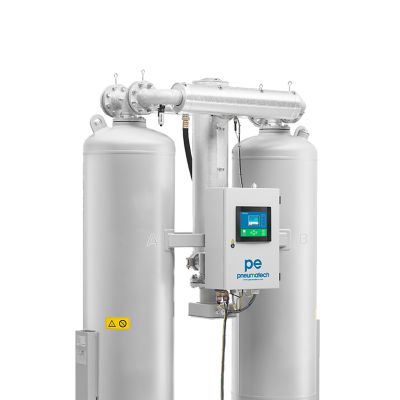

PE^adsorption dryers zoom view

Adsorption dryer technology

Moisture in compressed air can lead to corrosion, equipment damage, and production interruptions, especially in applications requiring extremely dry air. Desiccant dryers provide an effective solution by adsorbing moisture, ensuring a stable pressure dew point, often as low as -40°C, for air-sensitive processes. The PE 760-3390 S heated purge desiccant dryers offer large-capacity drying performance with energy-efficient heating and advanced controls, helping businesses maintain air quality, protect equipment, and reduce operating costs.

Discover the key features of the PE 760-3390 S

The PE 760-3390 S heated purge desiccant dryers deliver a stable -40°C dew point to ensure dry, high-quality compressed air. Low watt density heaters and optional dew point dependent switching help reduce energy consumption, while the Purelogic™ controller provides real-time system monitoring and safety safeguards. Forklift slots, lifting eyes, and flanged piping connections allow for easy installation and maintenance, with long-life silica gel desiccant ensuring durability in demanding environments.

Oplev fordelene ved avanceret tryklufttørring

Er du klar til at løfte dit trykluftsystem til næste niveau? Investering i en kvalitetstørrer sikrer ren, tør luft, der beskytter dit udstyr, reducerer vedligeholdelsesomkostningerne og øger den overordnede effektivitet. Med avancerede funktioner, der er designet til pålidelighed og energibesparelser, kan en højtydende tørrer forbedre din drift betydeligt. Kontakt os i dag, og find ud af, hvordan en opgradering af din lufttørringsløsning kan gavne din virksomhed.

Kontakt vores eksperter i luftbehandling

General specifications

Pressure dew point (°F)

-40

Nominal volume flow at dryer inlet (cfm)

763 - 3392

Max. inlet temperature (°F)

113

Model

Nominal volume flow at dryer inlet (cfm)

PE 760 S

763

PE 1020 S

1018

PE 1330 S

1336

PE 2060 S

2056

PE 2670 S

2671

PE 3390 S

3392

  • Advanced PurelogicTM controller with full communication possibilities
  • Dew point depending switching with no loss in energy during saturation process (only with purge option)
  • Lifting eyes and forklift slots for easy installation
  • Remote Alarm for status information from distance
  • Extra long-life silica gel to handle harsh conditions
  • Low watt density heater which results in energy savings Forklift slot
  • Removable stainless steel screens that can easily be removed
  • Galvanized piping with flanged connections for easy maintenance & long life time
  • Oversized muffles with relief valves for lower noise level

  • Safety valves
  • PDP sensor kit
  • PDP -70°C/-94°F
  • Sonic nozzle Insulated vessels
  • Robust packaging
