Adsorption dryers

PH 12-64 HE

The Pneumatech PH 12-64 HE heatless adsorption dryer, featuring the revolutionary Solides desiccant, delivers unmatched energy savings and low total cost of ownership. Its innovative design ensures superior performance, reliability, and easy maintenance.

Energy efficient

Efficiency that reduces costs

Built for efficiency, the PH 12-64 HE dryer optimizes air flow and minimizes pressure drop, reducing energy use and cutting operational costs with a highly efficient regeneration system.

Reliable performance

Consistent quality & control

The PH 12-64 HE ensures stable dew point control with its optimized purge nozzle and user-friendly DC1 controller, delivering consistent air quality and easy operation.

Low maintenance

Designed for ease & longevity

With a 40% longer desiccant life and no desiccant dust build-up, the PH 12-64 HE reduces maintenance needs, keeping upkeep simple and cost-effective.

PH 12-64 HE Extruded Profile Heatless Adsorption Dryers

The Pneumatech PH 12-64 HE heatless adsorption dryer is a high-efficiency powerhouse, now enhanced with the innovative Solides desiccant. This structured adsorbent boosts energy efficiency, providing one of the lowest total ownership costs on the market. With its advanced extruded profile design, the PH 12-64 HE sets new standards in reliability, minimal maintenance, and versatility.


Solides enables smooth, consistent air flow with a low pressure drop, ensuring both significant energy savings and a stable dew point. Built to last 40% longer than traditional desiccants, Solides also prevents desiccant dust, reducing maintenance time and risk of breakdowns, thanks to its block installation design.

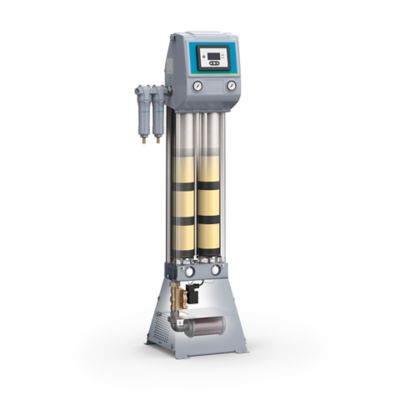

PH 12_64 HE adsorption dryer left angle ghosted

Adsorption dryer technology

Adsorption dryers remove moisture from compressed air by passing it through a desiccant, which holds water vapor without altering its structure. Hygroscopic materials like silica gel and activated alumina are commonly used, and once saturated, the desiccant is regenerated using dried compressed air or external heat. The PH 12-64 HE range takes this technology further with Pneumatech’s patented Solides structured desiccant, which ensures even air flow, lowers pressure drop, and stabilizes dew point. This advanced design extends desiccant life, prevents dust build-up, and reduces maintenance needs, enhancing overall efficiency and durability.

Discover the key features of the PH 12-64 HE

The PH 12-64 HE adsorption dryer range is designed with a range of features to ensure top-tier performance and simplicity. The patented Solides structured desiccant optimizes air flow and regeneration, delivering a consistently low pressure dew point while extending desiccant life by 40%. This advanced desiccant design is dust-free, reducing the risk of dryer failures and safeguarding production. For enhanced efficiency, the range includes purge nozzle optimization and is supplied with two high-quality pre-filters (G & C grade). Optional features like PDP control, a wall-mounting kit, and a condensate collection system add flexibility to meet various operational needs.

Experience the advantages of advanced compressed air drying

Ready to take your compressed air system to the next level? Investing in a quality dryer ensures clean, dry air that protects your equipment, reduces maintenance costs, and boosts overall efficiency. With advanced features designed for reliability and energy savings, a high-performance dryer can significantly improve your operations. Reach out to us today and discover how upgrading your air drying solution can benefit your business.

General specifications

Pressure dew point (°C)

-20, -40 & -70

Nominal volume flow at dryer inlet (m3/h)

19.8 - 158

Max. inlet temperature (°C)

60

Model

Version PDP -40°C

Nominal volume flow at dryer inlet (m3/h)

PH 12 HE

19.8

PH 22 HE

36

PH 33 HE

54

PH 43 HE

72

PH 53 HE

90

PH 64 HE

108

Model

Version PDP -20°C

Nominal volume flow at dryer inlet (m3/h)

PH 17 HE

29

PH 34 HE

58

PH 49 HE

83

PH 64 HE

108

PH 79 HE

133

PH 94 HE

158

Model

Version PDP -70°C

Nominal volume flow at dryer inlet (m3/h)

PH 14 HE

21.6

PH 21 HE

32.4

PH 27 HE

43.2

PH 33 HE

54

PH 40 HE

64.8

PH 12-64 HE product brochure

Download

Filename
Pneumatech_PH_12-64_HE_Sales_Leaflet_ENG_6999900830-LR.pdf
Size
558 KB
Format
pdf
Download

  •  Solides structured desiccant offers highly efficient air flow and regeneration
  • Stable low pressure dew point
  • 40% longer desiccant lifetime
  • Easy desiccant maintenance
  • No desiccant dust that can cause dryer failures and compromise production
  • Purge nozzle optimization
  • Delivered with two pre-filters (G & C grade)
  • PDP control (optional)
  • Wall-mounting kit (optional)
  • Condensate collection (optional)

  • Heatless adsorption dryers: extruded profile design
  • Dew points achievable: -20°C/-5°F, -40°C/-40°F (with structured desiccant) -70°C/-94°F (with beads)
  • Pressure range: 4-14 barg/58-203 psig
  • Ambient temperature range: 2-45°C/35,6-113°F
  • Inlet temperature range: 2-60°C/35,6-140°F
  • Power supply: 115VAC-230VAC 50/60Hz

  • PDP control
  • IP65 / Nema4
  • Wall mounting kit
  • Condensate collector
