Flow sensors

Flow Check Universal W

Designed for moist air and high-temperature applications, the Flow Check Universal W ensures accurate flow, temperature, and pressure measurement immediately downstream of the compressor. With a fast response time (100 ms) and a temperature resistance of up to 180°C, it provides reliable monitoring even in demanding conditions.

Contact us for a quote!

Reliable Wet Air Measurement

Accurate monitoring in demanding conditions

The Flow Check Universal W is designed to measure moist compressed air immediately downstream of the compressor, ensuring precise flow, temperature, and pressure readings even in high-humidity environments.

High-Temperature Resilience

Performance up to 180°C

 Built to withstand extreme conditions, this flow sensor operates reliably at temperatures up to 180°C, making it ideal for hot, moisture-laden air systems where standard sensors may fail.

Fast and Flexible Integration

Quick response & easy installation

With an ultra-fast response time of 100 ms, it provides real-time data for efficient monitoring. Installation is quick and secure, even under pressure, via a 1/2” ball valve, ensuring seamless integration into compressed air systems.

Flow Check Universal W Flow Sensors

Measuring compressed air right after the compressor comes with challenges—high temperatures, moisture, and fluctuating flow rates. The Flow Check Universal W is built to handle these conditions, providing a clear and accurate picture of your system’s air usage, even in demanding environments.


With fast response times, it helps businesses track airflow, temperature, and pressure in real time, making it easier to optimise efficiency, detect inefficiencies, and improve system performance. Designed for simple installation, it integrates smoothly into existing setups, offering a practical and reliable way to monitor compressed air use in industries where precision matters.

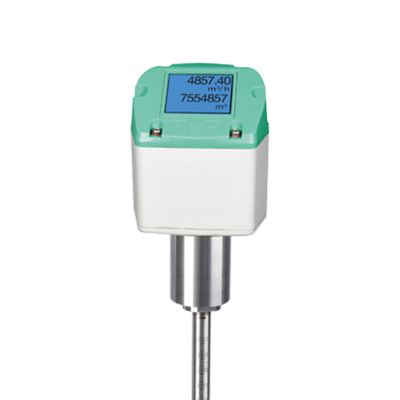

Flow Check universal W flow sensors zoom view

Maximising efficiency with flow sensors

Flow sensors play a vital role in measuring compressed air and gas consumption, helping businesses track usage, improve efficiency, and reduce energy waste. By providing real-time data on airflow, temperature, and pressure, they make it easier to detect inefficiencies and maintain a well-optimized system. The Flow Check Universal W takes this a step further, offering reliable measurement in wet air environments and high temperatures up to 180°C. Designed for demanding applications such as compressor capacity monitoring and system efficiency assessments, it ensures accurate data, even in challenging conditions.

Discover the key features of the Flow Check Universal W

The Flow Check Universal W is designed for precise flow monitoring in moist compressed air and high-temperature environments up to 180°C. It features an integrated display for real-time readings of flow, total consumption, temperature, and pressure. With a fast response time of 100 ms, it delivers immediate insights for efficient system monitoring. Installation is quick and secure, even under pressure, via a 1/2” ball valve, and it seamlessly integrates with monitoring systems using RS 485 Modbus-RTU, 4-20 mA analog output, and optional pulse output.

Reliable tools to track performance, improve efficiency, and reduce costs

Protecting your compressed air system while ensuring precise performance has never been easier. High-quality measurement equipment provides accurate monitoring of critical parameters, helping you optimise efficiency, maintain reliability, and prevent costly issues. Engineered for durability and seamless integration, these solutions empower you to make informed decisions and keep your operations running at peak performance. Contact us today to explore how upgrading your measurement equipment can enhance your system's capabilities and operational success.

Contact our measurement equipment experts

General specifications

Technical data Flow Check Universal W

Measuring range

up to 224 m/s / 600 m/s

Measured medium

Air, non-aggressive gases

Accuracy
(m.v.: of meas. value / f.s.: of full scale)

± 1.5% of m.v. ± 0.3% of f.s.(20...224 m/s)
± 1.5% of m.v. (> 224 m/s)

Measuring principle

Differential pressure

Measuring span

1:10

Response time

t 99: < 1 sec.

Temperature of the medium

-30 °…+180 °C

Operating pressure

Max. 20 bar

Ambient temperature

-30 ° … +70 °C

Screw-in thread

G 1/2″, ISO 228

Power supply

18 … 36 VDC, 5 W

Signal outputs

As standard: RS 485 (Modbus-RTU), 4…20 mA, pulse
Optional: Ethernet Interface (PoE), M-Bus

  • Particularly suitable for extremely high flow rates
  • Extremely fast response time: 100 ms
  • Flow, total consumption, temperature and pressure
  • Measurement at high temperatures, max. temperature 180 °C
  • Measurement in various gases by selecting the gas type, on request
  • Can be used in pipes from DN 20 to DN 500
  • Installation via 1/2″ ball valve under pressure
  • RS 485 interface (Modbus-RTU), 4...20 mA, pulse output as standard
