Oil water separators

ECOBOX 2-4

The ECOBOX 2-4 oil-water separator range efficiently manages compressor condensate, reducing oil concentrations to below 15 ppm. Compact and easy to integrate, it offers a cost-effective, eco-friendly solution for small compressed air systems.

Reliable performance

Effortless regulatory compliance

The ECOBOX 2-4 effectively reduces oil concentrations in condensate to below 15 ppm, making it simple for businesses to meet even the most stringent environmental regulations.

Energy-efficient

Cost-effective condensate management

Say goodbye to costly external condensate treatment services. The ECOBOX offers an in-house solution that lowers operational expenses while delivering reliable performance.

User-friendly

Compact & convenient

With its lightweight and space-saving design, the ECOBOX fits seamlessly into small compressor setups, ensuring easy installation without compromising on efficiency.

ECOBOX 2-4 Oil Water Separators

The ECOBOX 2-4 simplifies condensate management, offering an eco-friendly solution for compressed air systems. Its compact design makes it ideal for small setups, ensuring easy integration without compromising effectiveness. By separating oil from water efficiently, it helps businesses meet environmental standards while promoting sustainable practices.


With minimal maintenance and a user-friendly approach, the ECOBOX 2-4 provides a cost-effective way to manage condensate, supporting smooth operations and reducing expenses.

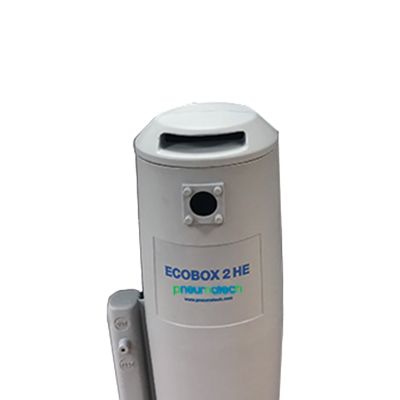

ECOBOX 2-4 oil water separator zoom view

The critical importance of oil water separation in compressed air systems

Oil-water separators remove oil from condensate in compressed air systems, preventing environmental harm and ensuring regulatory compliance. Without them, untreated condensate can damage ecosystems and lead to costly fines. The ECOBOX 2-4 range provides a compact, efficient solution, reducing oil concentrations to below 15 ppm while eliminating the need for external treatment. With advanced filtration and a space-saving design, it ensures sustainable and cost-effective condensate management.

Discover the key features of the ECOBOX

The ECOBOX range is equipped with advanced adsorption media that efficiently reduces oil concentrations to below 15 ppm, ensuring compliance with stringent environmental regulations. Its compact and lightweight design allows for seamless integration into small compressed air systems, making it ideal for limited spaces. Designed for convenience, the ECOBOX is easy to install and maintain, offering a reliable, cost-effective solution for managing condensate without the need for external treatment services.

Experience the benefits of effective condensate management

Ready to safeguard your compressed air system and maximise efficiency? High-quality condensate management solutions prevent moisture and contaminants from compromising your equipment and operations. Designed for reliability, energy efficiency, and seamless performance, these advanced technologies protect your system while minimising maintenance needs and operational costs. Contact us today to discover how upgrading your condensate management can elevate system performance and keep your operations running smoothly.

General specifications

Max. capacity - mild climate (m3/h)

190 - 1400

Inlet connection (inch)

4 x 1/2"

Service life filter (hrs)

4000

Model

Max. capacity – mild climate (m3/h)1

Inlet connection (mm)

Service life filter (hrs)2

ECOBOX 2

190

4 x 1/2"

4000

ECOBOX 3

570

4 x 1/2"

4000

ECOBOX 4

1400

4 x 1/2"

4000

1. In tropical climates (high ambient temperatures and humidity levels), the air generally contains more water vapor. The extra condensate, generated during the compression and cooling process of the air, shortens the contact time in the device, leaving less time for the media to absorb the oil. Climatic conditions used in the table above are defines as follows: a.  Cold climate conditions: average ambient temperature of 20°C/ 68°F- relative humidity of 50 % b.  Normal climate conditions: average ambient temperature of 25°C/ 75°F - relative humidity of 50% c.  Hot climate conditions: average ambient temperature of 35°/ 95°F - relative humidity of 70%

2. Pneumatech assumes as well maintained compressor plant and reasonable operating conditions. Performance on mineral or mineral-based lubricants should be as above, irrespective of compressor type, condensate drain technology or climate,provided the condensate produced is not a stable emulsion.

  • Excellent performance
    2-stage filtration with advanced adsorption media
    After separation, water contains oil levels below 15 ppm(1)
    Emulsion treatment possible  (on request)
  • Eliminating potential health issues
    No standing or stagnant water
  • Plug-and-play installation and service
    Connection points at inlet
    Compact footprint
    No pre-soaking required
  • Time-based service indicator and sampling kit (standard) to verify outlet concentration on a regular base.

  • Extra 4 port kit
