Reliable nitrogen supply
Low to medium purity, on demand

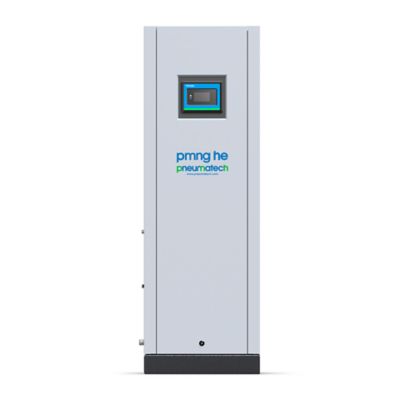

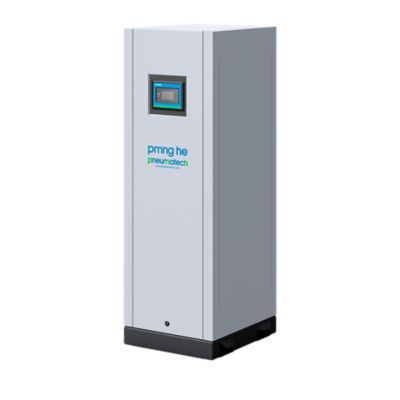

The PMNG 4-40 HE provides on-site nitrogen with purities from 95% to 99.5%, combining the convenience of membrane technology with the reliability of a steady, self-sufficient supply.
Lower Air & Energy Use
Efficiency that saves
Built with high-efficiency membrane technology, the PMNG 4-40 HE uses up to 35% less air than standard membrane generators, helping reduce energy consumption and operating costs.
Space-saving & easy
Compact & plug-and-play
Designed to fit into tight spaces, the compact PMNG 4-40 HE comes ready to install, with quick commissioning, easy purity adjustments, and various models to match different nitrogen needs.
General specifications
Nitrogen purity achievable (%)
99.5
Inlet pressure range (barg)
4 - 13
Ambient temperature range (°C)
5 - 50
Model |
Nominal free nitrogen delivery (Nm3/h) |
|||||
---|---|---|---|---|---|---|
95% |
96% |
97% |
98% |
99% |
99.5% |
|
PMNG 4 HE |
24.7 |
20.9 |
17.2 |
13.4 |
9.6 |
7.1 |
PMNG 8 HE |
49.4 |
41.8 |
34.5 |
26.8 |
19.3 |
14.2 |
PMNG 12 HE |
74.1 |
62.7 |
51.7 |
40.3 |
28.9 |
21.4 |
PMNG 16 HE |
98.8 |
83.6 |
68.9 |
53.7 |
38.5 |
28.5 |
PMNG 20 HE |
123.5 |
104.5 |
86.2 |
67.1 |
48.1 |
35.6 |
PMNG 24 HE |
148.2 |
125.5 |
103.4 |
80.5 |
57.8 |
42.7 |
PMNG 28 HE |
172.9 |
146.4 |
120.6 |
93.9 |
67.4 |
49.9 |
PMNG 32 HE |
197.5 |
167.3 |
137.9 |
107.4 |
77.0 |
57.0 |
PMNG 36 HE |
222.2 |
188.2 |
155.1 |
120.8 |
86.6 |
64.1 |
PMNG 40 HE |
246.9 |
209.1 |
172.4 |
134.2 |
96.3 |
71.2 |
PMNG 4-40 HE product brochure
Download
- Filename
- Pneumatech_PMNG_4-40_HE_Sales_Leaflet_ENG_6999900500_LR.pdf
- Size
- 293 KB
- Format
- Reduced air consumption by 35% on average (up to 51%) versus other membrane generators
- More flow in the same compact footprint
- All-in-one plug & play solution
- Very low sound levels
- Instant purity selection between 95% and 99.5%
- Proprietary membrane technology ensuring lasting performance
- No heater (which requires extra power) needed
- Guaranteed purity
- Reliable purity measurement
- All filters integrated in canopy
- No buffer vessels required
- Instant supply of nitrogen
- No specialist installation or commissioning
- Optimal control, monitoring and connectivity thanks to new Purelogic Touch controller
- Membrane Nitrogen Generators
- Nitrogen purity achievable: 95%-99.5%
- Inlet pressure range: 4-13 barg/60-189 psig
- Inlet temperature range: 5-50°C/41-122°F
- Required inlet air quality: -:4:- according to ISO 8573-1:2010
- Power supply: 115-230VAC/50-60Hz
- Oil indicator
Monitors the oil level of the air going into the membranes. - Flow sensor
Ensures 24/7 nitrogen flow monitoring. - Inlet dewpoint sensor
Monitor the inlet dewpoint and triggers a shutdown warning if the dewpoint is to high. - Outlet dewpoint sensor
Visualises the outlet pressure dewpoint for critical applications. - High ambient temperature software
Protects the unit in high ambient conditions.
